精选材质 / 质量保证
CS160
特点/ntrodution: 用特殊金属化聚丙稀膜无感卷绕而成，高性能阻燃环氧树脂封装于铝壳中，等效串联电阻小，能承受较大的纹波电流，自感小、温升低、寿命长。 Special metallized polypropylene film wound non-inductive construction, is sealed with high performance flame-retardant epoxy resin in aluminum case LOW ESR and support high ripple current. Low sttay inductance.low temperature and long life experctance. 用途/Application: 用于直流滤波电路中，可替代电解电容，太阳能/风能发电用逆变器，UPS电源、变频器、电焊机、电动汽车及混合动力车等。 Widely used in DC Filter circuit to replace electrolytic capacitors. Solar/Wind power inverters converters.power supply for train. Electronic venicle and hybrid train.
性能指标 / Technical data
| 引用标准Referenced standard | GB/T17702 |
| 容量范围Capacitance range | 100-2600pF |
| 容量允许偏差Capacitance Tolerance | ±5%(J)，±10%(K) |
| 电压范围Voltage Range | 600V.DC-2200V.DC |
| 极壳耐压Utc | 2Ui+1000V.AC/10S(50Hz)(#2000V.AC)《或根据客户需求》or(Refer to customer's requirement) |
| 极间耐压Utt | 1.5Un/10S |
| 损耗角Dissipation Factor(tg 8) | tg5≤0.003(at100Hz) |
| 绝缘电阻Insulation Resistance | Rix C≥5000s |
| 气候类别Climate Category | 40/85/21 |
| 工作温度范围Working Temperature | -40℃-70℃(***85℃) |
| 使用海拔Height | <2000m |
| ***电极扭矩Max Electrode Torque | M6：3N.m |
| ***安装扭矩Max Install Torque | 10N.m |
| 预期寿命Life expectancy | 100000h |
| 阻燃性Flame Retardation | UL94v-0 |

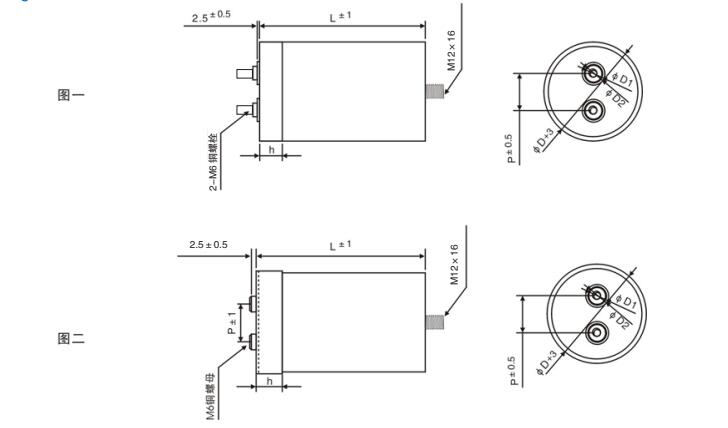

外形图 / Outine drawing
Un | 容量CAP | 等效串联电阻 | 杂散电感 | 纹波电流有效值 | 脉冲电流 | L | ΦD | 重量Weight |
| 600 | 470 | 1.5 | 60 | 60 | 2350 | 180 | 76 | 1 |
| 800 | 450 | 2 | 50 | 60 | 2700 | 145 | 76 | 0.9 1.5 |
| 1100 | 250 | 4 | 40 | 35 | 1500 | 130 | 76 | 0.7 |
| 1200 | 300 | 4 | 40 | 40 | 2000 | 132 | 96 | 1.3 |
| 1600 | 200 | 4.5 | 60 | 60 | 2000 | 180 | 76 | 1 |
| 2000 | 100 | 12 | 40 | 30 | 1000 | 130 | 76 | 0.8 |
| 2200 | 190 | 12 | 40 | 55 | 1900 | 132 | 116 | 1.8 |
备注：以上规格供选型参考，如有特殊需求可另行设计。
The above demension is for your reference, or special size and items on request.
